Dragonfly Dragonfly

Elevating Clean Flights to New Heights

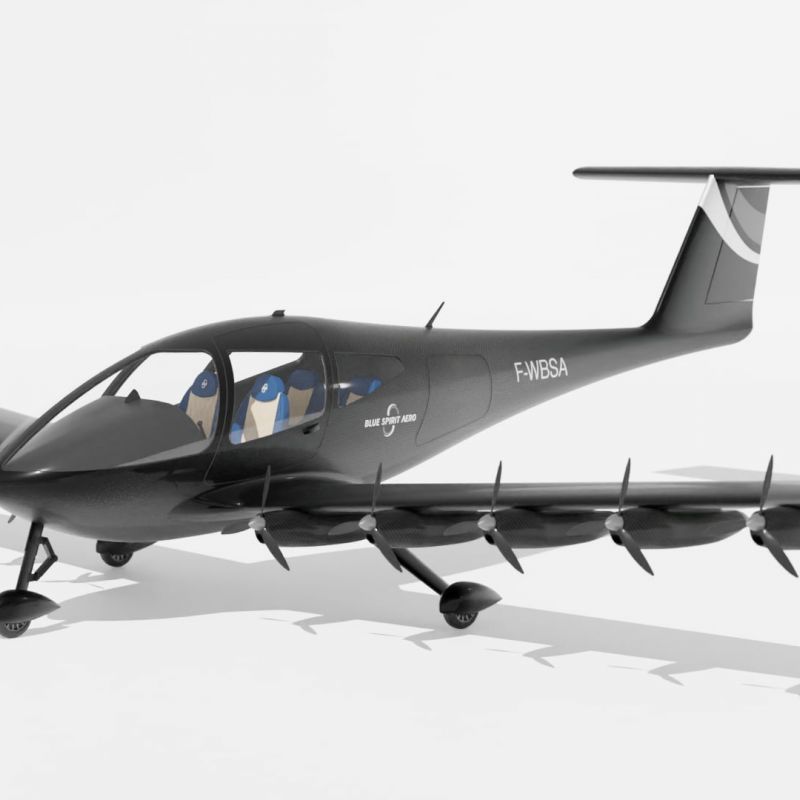

Blue Spirit Aero's aircraft lineup is transforming light aviation. Powered by clean, quiet hydrogen fuel cells, the Dragonfly models combine comfort, sustainability, and performance with unmatched operating efficiency. The future is here, and Dragonfly is leading the way.

Performance Dimensions Weights Powertrain

Technical specs: 4S 6S

Ground Takeoff Distance < 985 ft
Service Ceiling Altitude 10 000 ft
Climb Rate > 785 ft/min
Stall Speed Flaps Extended 61 kts
Cruise Speed 125 kts
Max Range 375 nm
Wingspan 13 m
Length 7.5 m
Height 3 m
Cabin Width 1.5 m
Cabin Length 2.5 m
Cabin Height 1.5 m
MTOM 1800 kg
Seats 4
Useful Payload > 350 kg
Fuel Mass vs MTOM < 2 %
Power Source H2 Fuel Cells
Pollutant Emission 0 kg/km/pax
Cabin Noise Level < 70 dB
Total Installed Power 180 kW
Performance Dimensions Weights Powertrain

Range: 4S 6S

Max Range: 375 Nm

Move the map to visualize the range from any airfield around the world

Timeline: 4S 6S

2021

Preliminary design

2022

Demonstration projects

2023

Proof of concept

2024

Manufacturing of prototype

2025

First flight

2026

Certification

2027

Entry into Service

Safety, Sustainability and Efficiency

Proprietary electro-propulsive technology optimised for clean performance.

STOL Performance [PATENT PENDING]

Reduced stall risk and Short Take-Off and Landing (STOL) distances by optimising the use each propeller’s slipstream.

Clean and Quiet

Producing electricity from fuel cells powered by hydrogen allows for a uniquely quiet flight experience, with pure water being the only by-product.

Robust to Failure

Spreading the power generation across independent propellers ensures that no single breakdown is able to cause an aircraft level failure.

Increased Range and Endurance

BSA's hydrogen system contains more energy per unit mass than a battery-powered alternative, allowing for longer flights.

Fast Hydrogen Refuelling Time

With a single refuelling port per wing, the total turnaround time is less than 10 minutes.

Modular Electro-Propulsive Units [PATENT PENDING]

The powertrain is fully integrated into a set self-contained pods, each one being modular and easily dismountable.

Reduced Maintenance Costs [PATENT PENDING]

Independent, interchangeable and lightweight propulsive modules that can be dismantled and replaced in minutes.

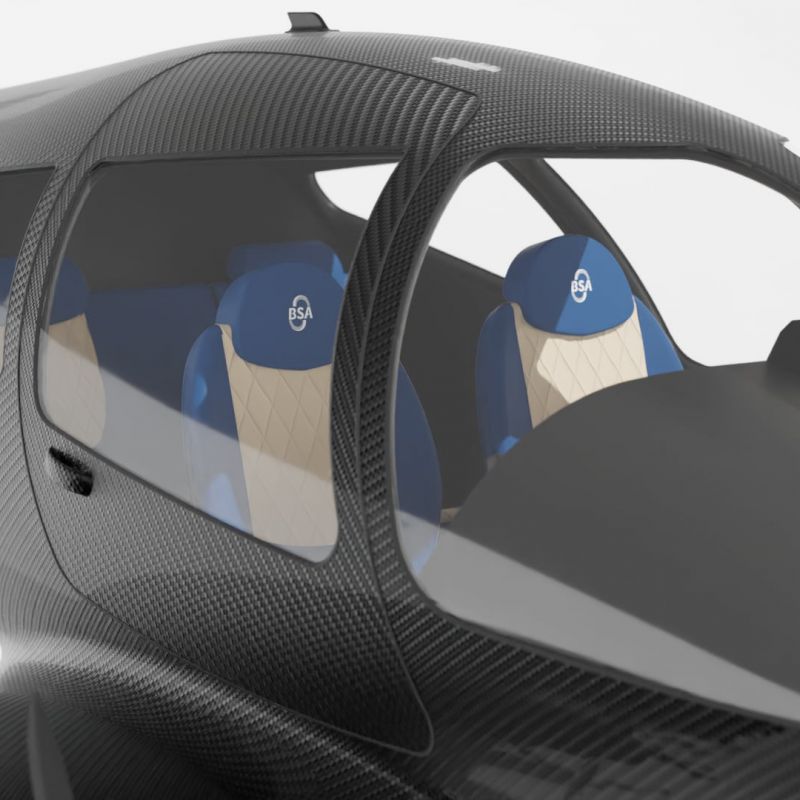

Comfortable Cabin Design

Ergonomic and spacious, with extensive outside visibility.
